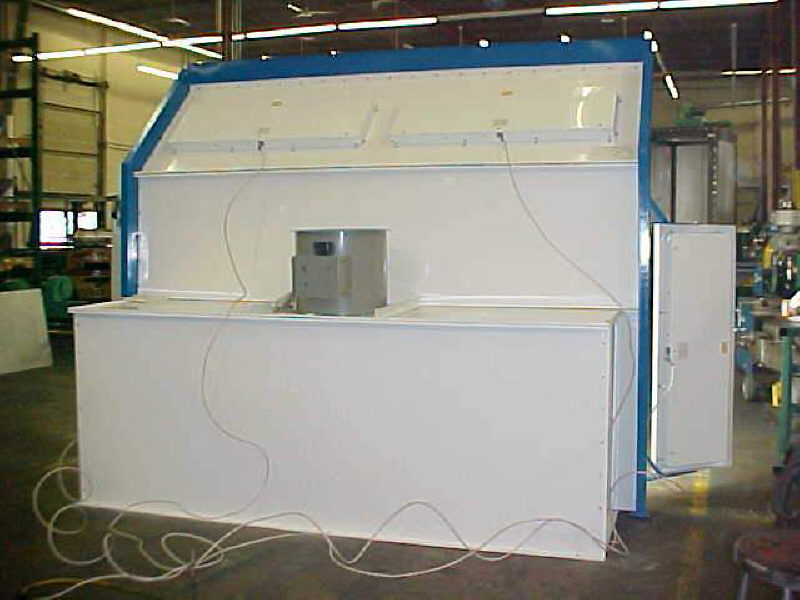

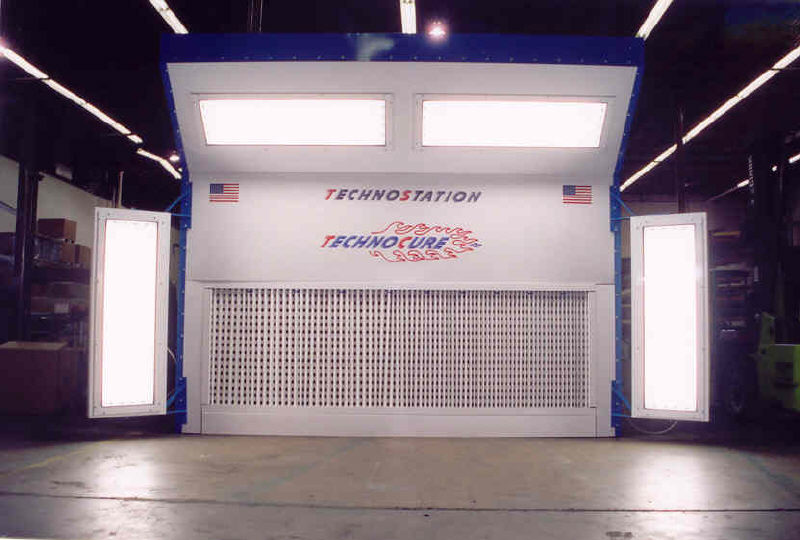

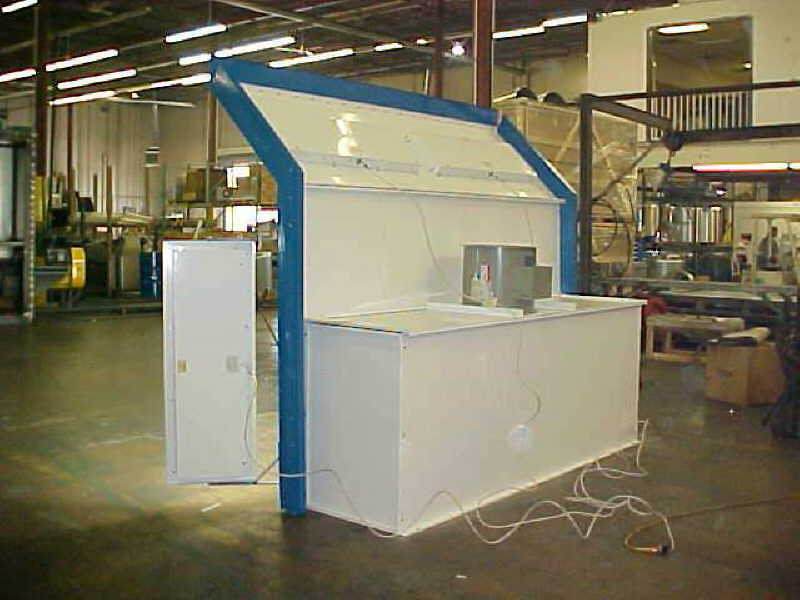

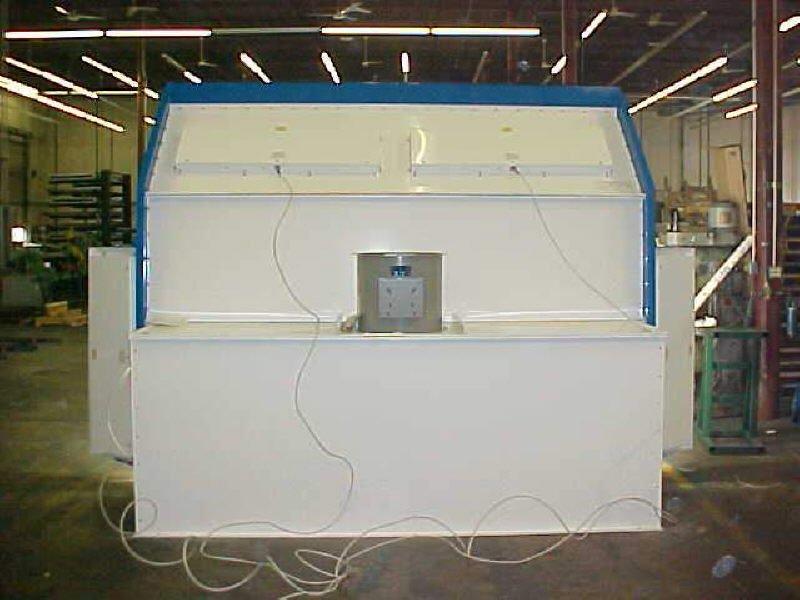

The new TECHNOSTATION.

 Designed so that you can prep, sand, grind, buff, weld and eliminate unwanted dust and shop fumes. All of this and more in a well lit and ventilated area.

At our low price of only $5,495.00 you can place a TECHNOSTATION in every work stall to reduce your cycle times and increase your profits!

Specifications:

Construction
18-gauge,
prime quality G90 Galvanized Steel, pre punched for easy nut and bolt construction.

Lighting
Ultra bright illumination is provided by 4-four-tube, 120v, sealed and gasketed class I division II, 48 long, 32-watt T8 fluorescent light fixtures
. All fixtures are UL listed and approved for their intended use.
Side light fixtures are adjustable to provide illumination where most needed.

Need help on lighting decisions? this article will help: "The right light?"

Exhaust Filtration System
Andreae pleated filter with 99.6% efficiency. All filters can be replaced simply.

Fan
One 18 inch, precision balanced with spark resistant aluminum fan blades that can deliver up to 5,000 cu. ft. per minute each @ .5" Static Pressure, with low operating noise level.

Fan Motor
One 1 1/2hp 208-230/480 volt, 3 phase, high efficiency, totally enclosed fan cooled (TEFC). (optional single phase available). M
otors are UL listed and approved for their intended use
.

Finish
"Porcelain like" Polyurethane and Polyester Premium White Powder Coating.

Exhaust Stack Kit
includes: 1-18 Connection ring 1-18 X 36 long plain pipe duct with cleanout door 3-18 X 36 long plain pipe duct 1-18 Flat roof flashing with storm collar  1-18 Automatic discharge damper (Total height from floor to top of automatic discharge damper is 18) (additional duct pieces are available for higher roofs)

Options:

bullet

Shop Curtains

Downloads:

Download Technostation Brochure Technostation Brochure 2.2MB
Download Technostation Drawing Technostation Drawing 128KB

You'll need Adobe Acrobat Reader to view it. If you don't have it already, get it here for free.

TECHNOSTATION complies with all NEC, OSHA and NFPA regulations.

All hardware, filters and sealants needed for installation are included. Some electrical components are to be supplied by others.
