Self Supporting Welding Fume Extractor Arms

Self supporting fume arms provide an economical and effective method for the capture of fumes. Contaminants are removed at the source. The use of self supporting joints, flexible hoses and smooth bore tubing allows for easy placement of the arm's hood near the source of the problem. Fume arm tubes are fabricated of steel with cast aluminum joints which include a carbon fiber friction disc and are fully adjustable to the worker's desired tension. The arms include a handle which completely encircles the hood in order to facilitate easy repositioning from all sides. Hood diameters vary from 6" (160mm) on the 4" (100mm) arms to 14" (350mm) on the 8" (200mm) arms. All joints include a 2000 degrees F (1093 degrees C) rated hose which is gear clamped to the tube. All hoods are equipped for the installation of an optional light and sensor kit for on/off exhaust control.

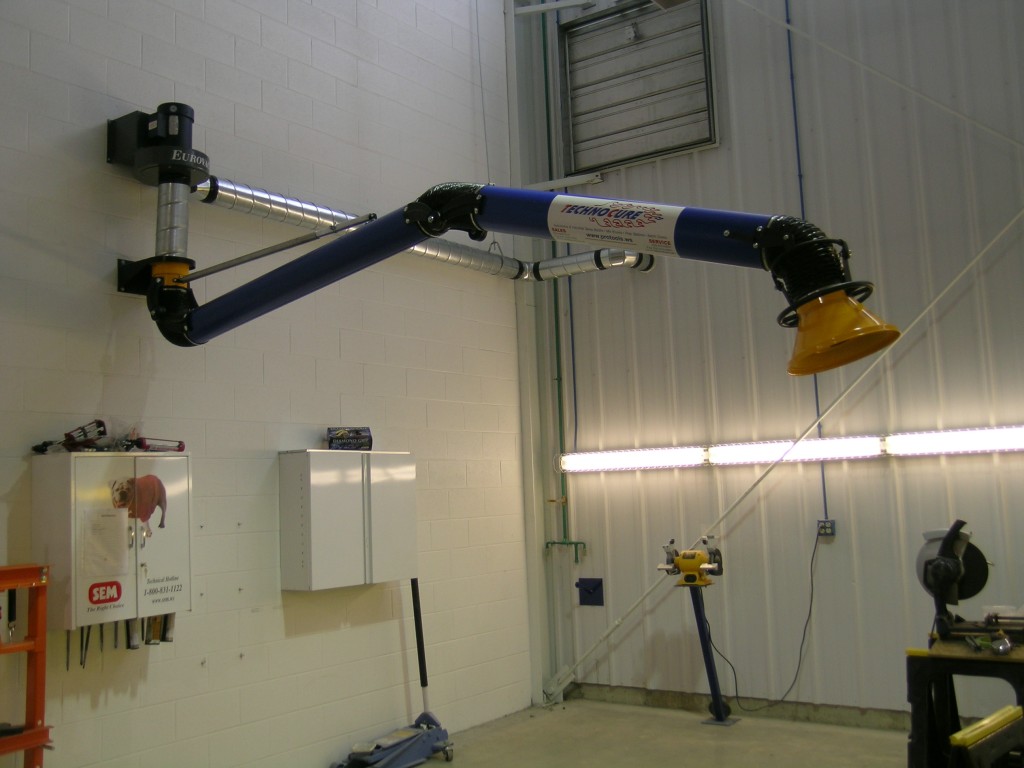

Swing the arm down to the area you will be welding.

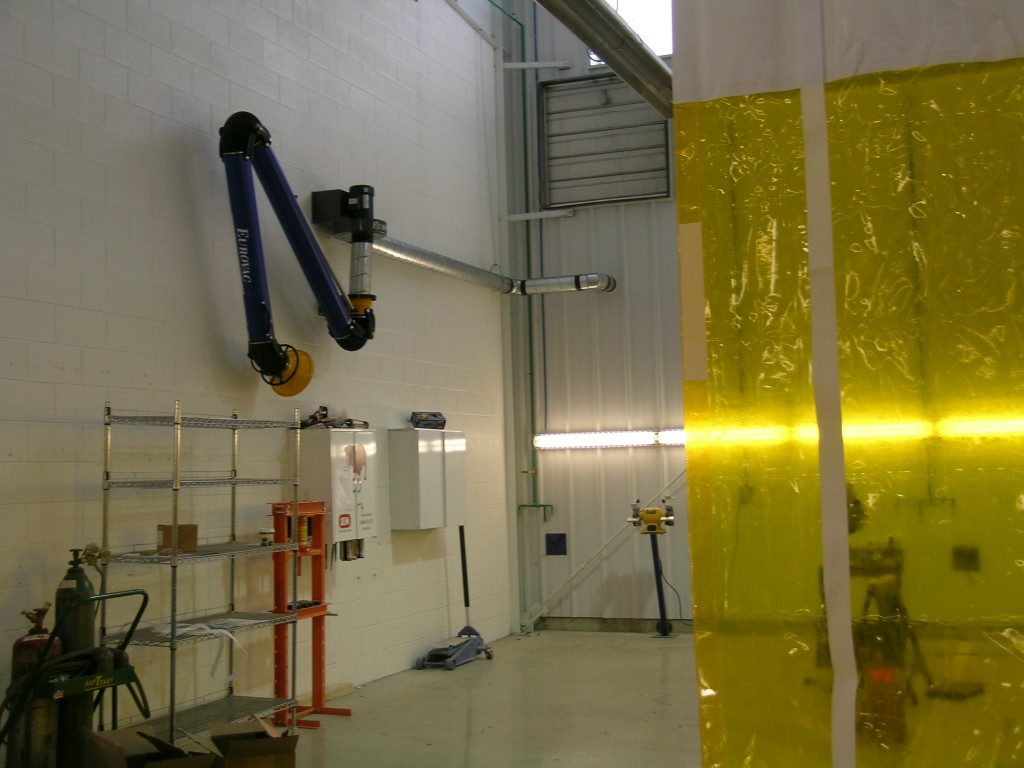

When not using the arm swing it up and out of the way

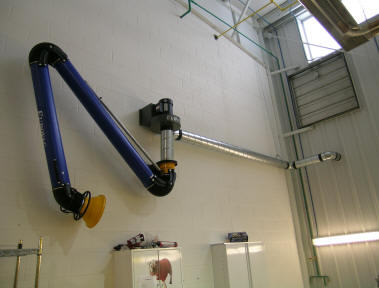

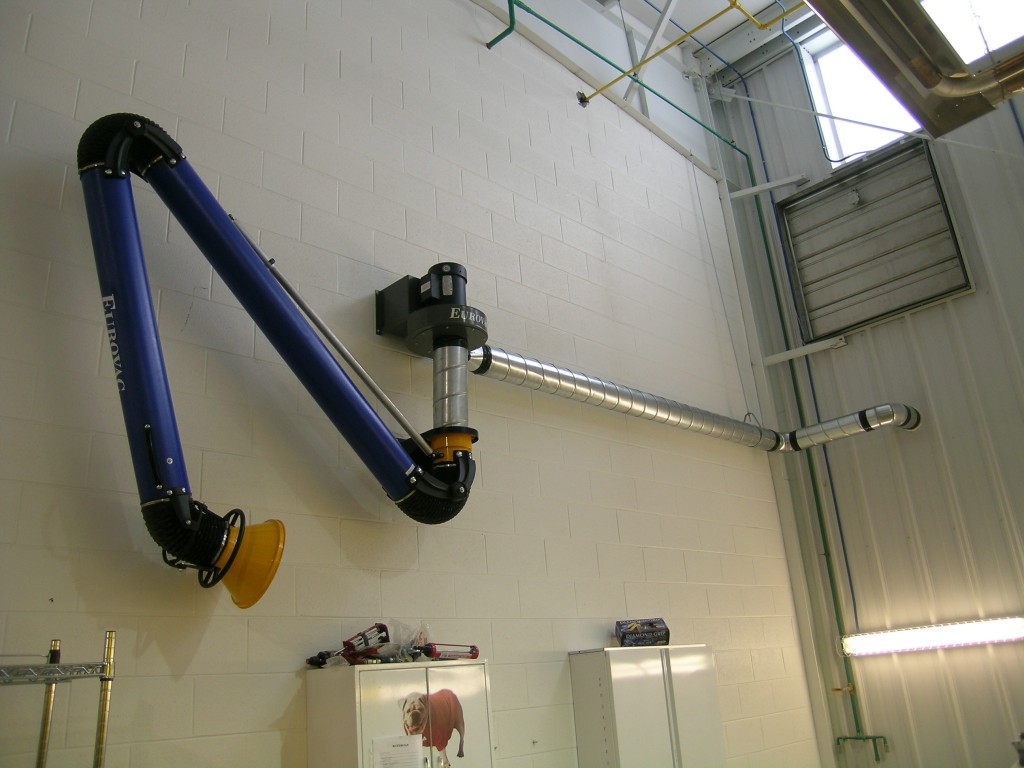

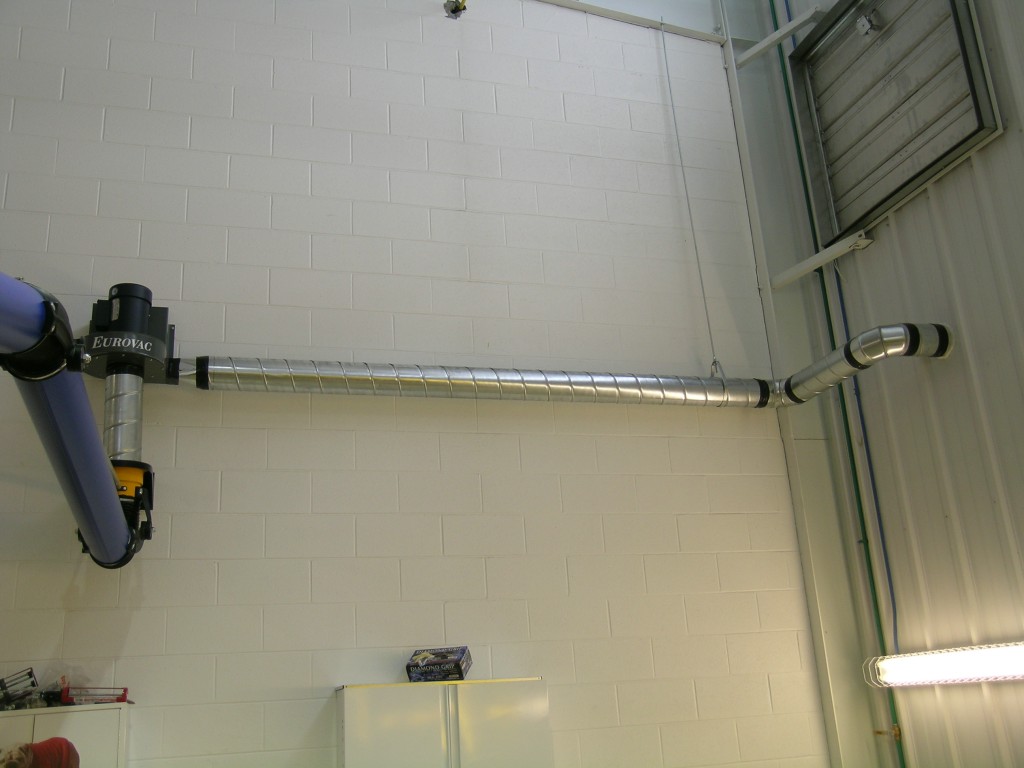

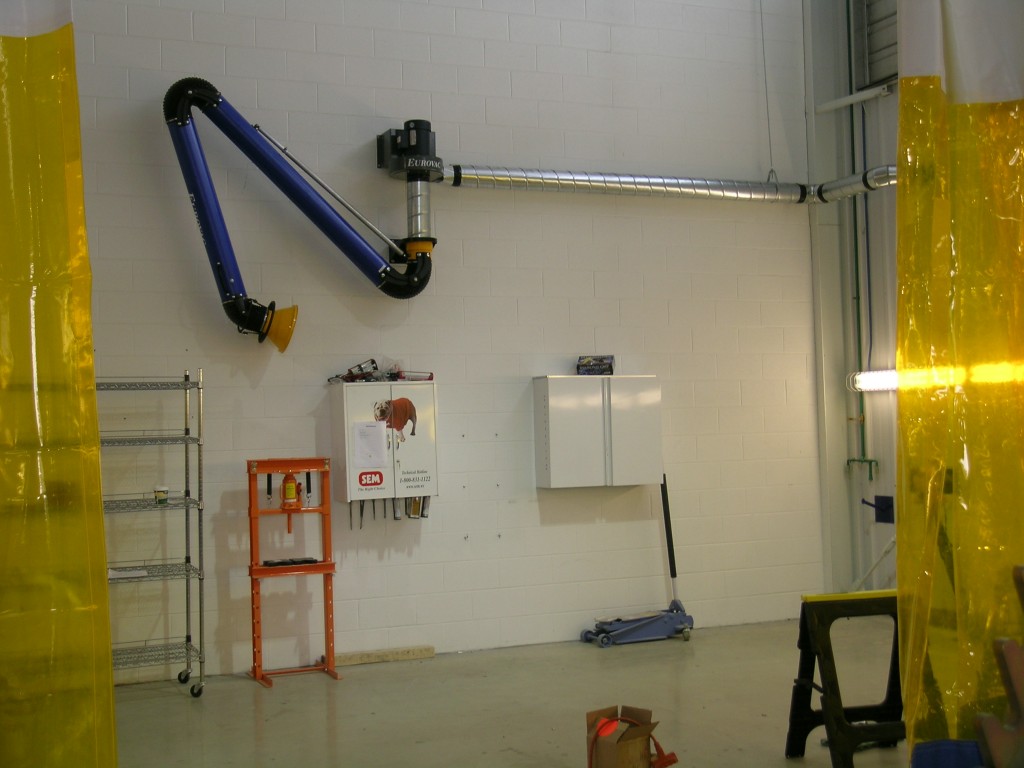

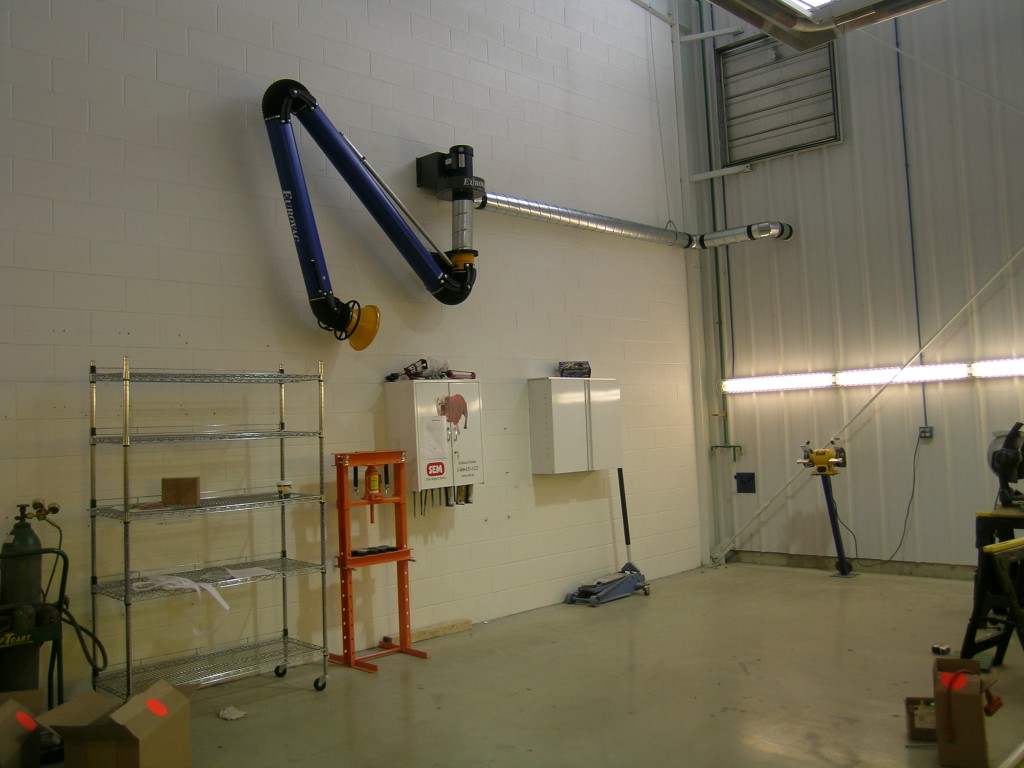

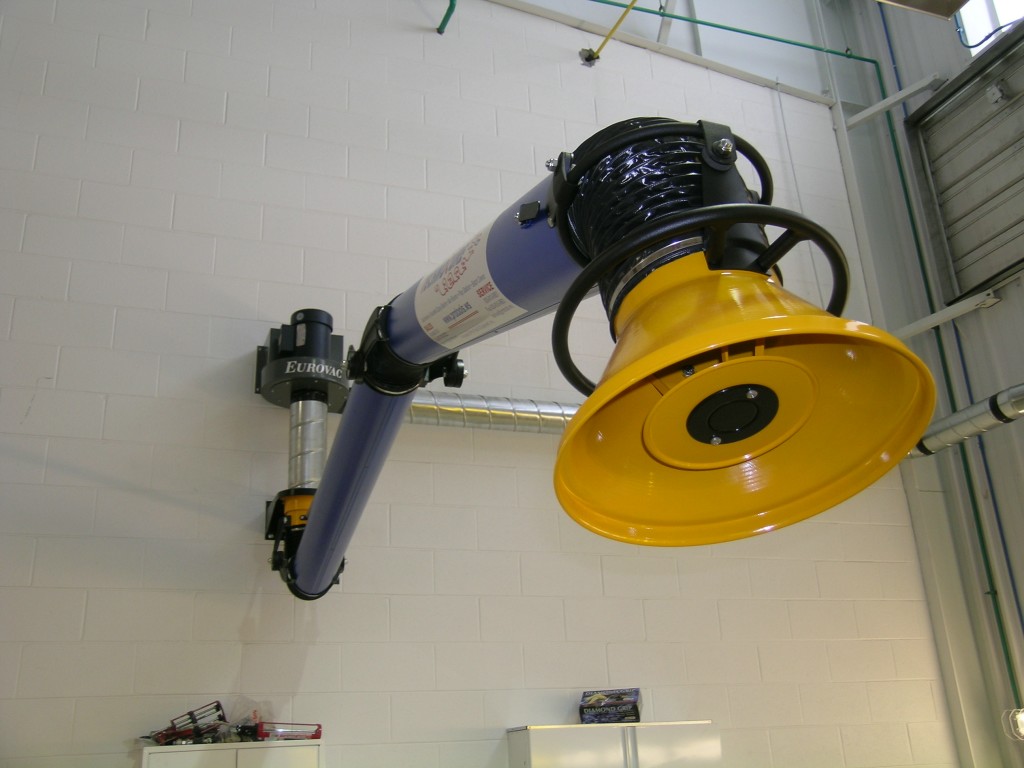

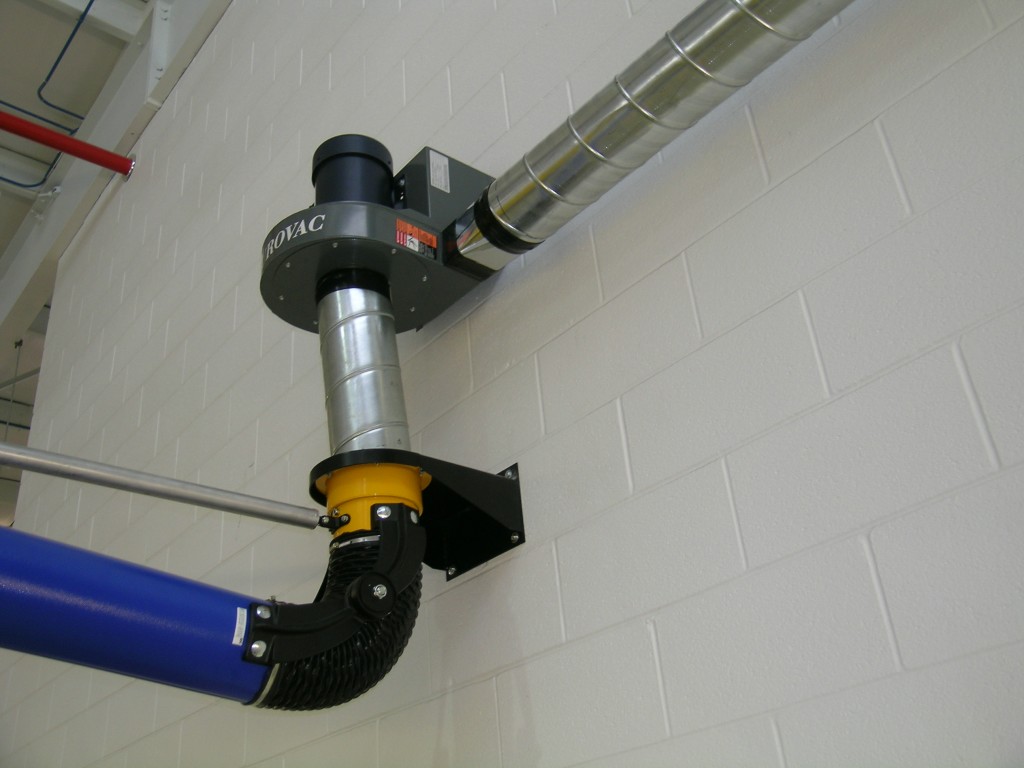

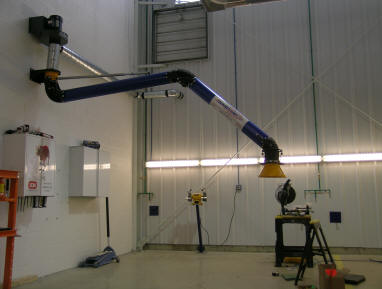

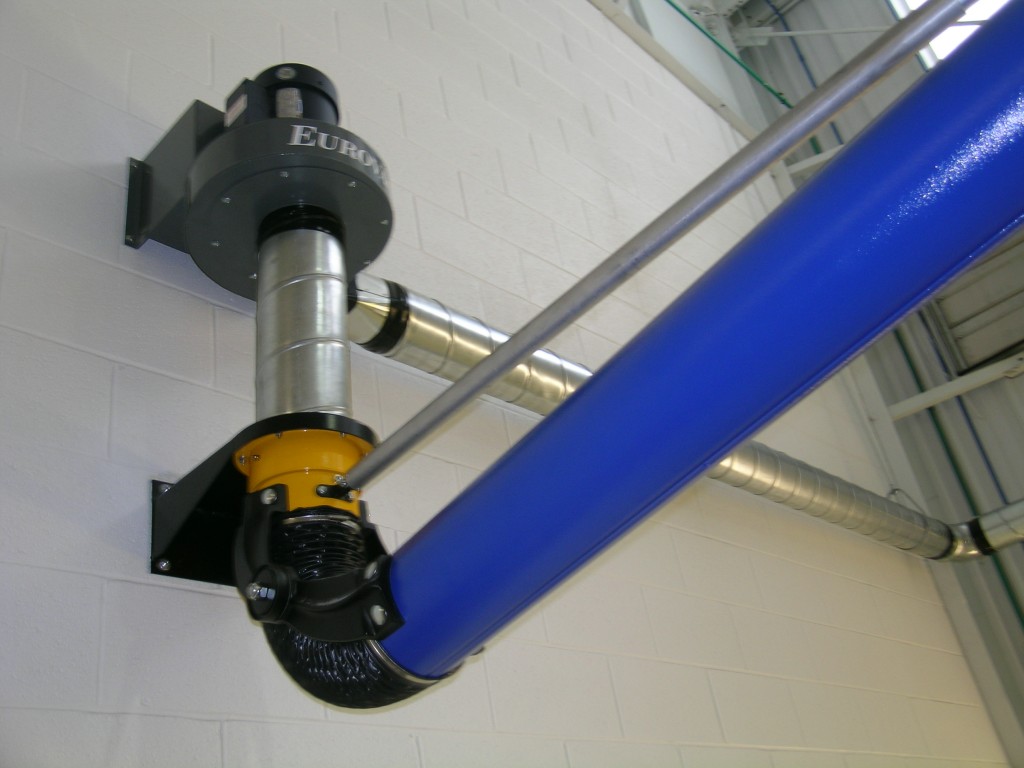

Here are some photos of a 14' long 6" diameter arm with a 14" hood.

(Click on any photo to enlarge)

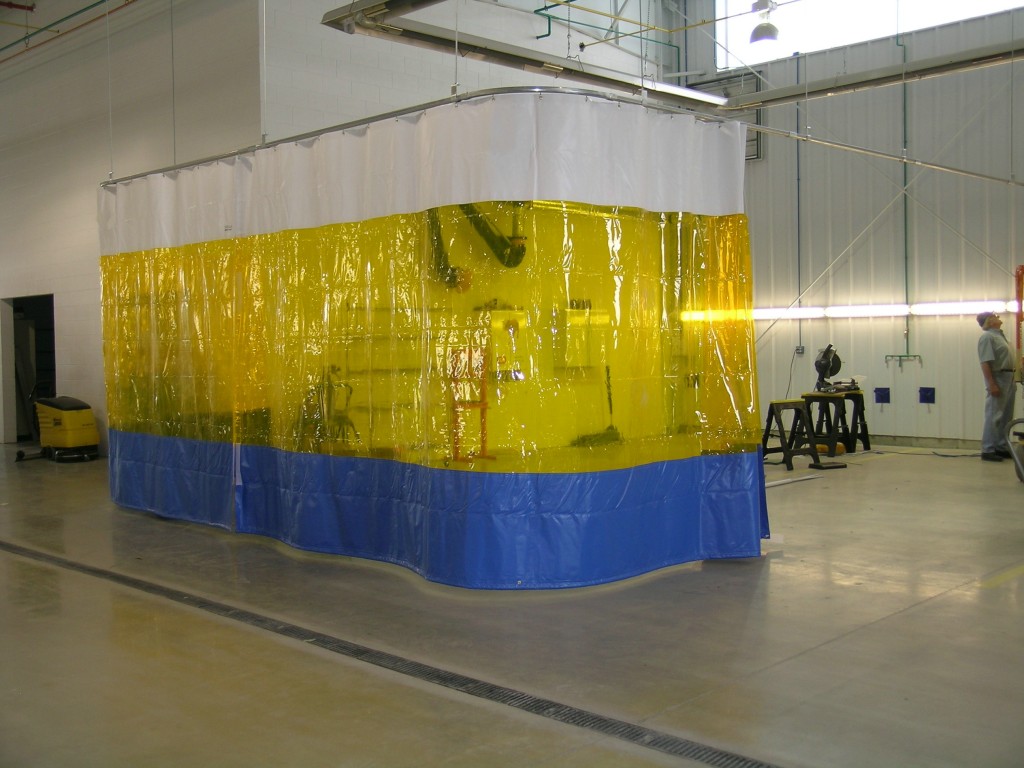

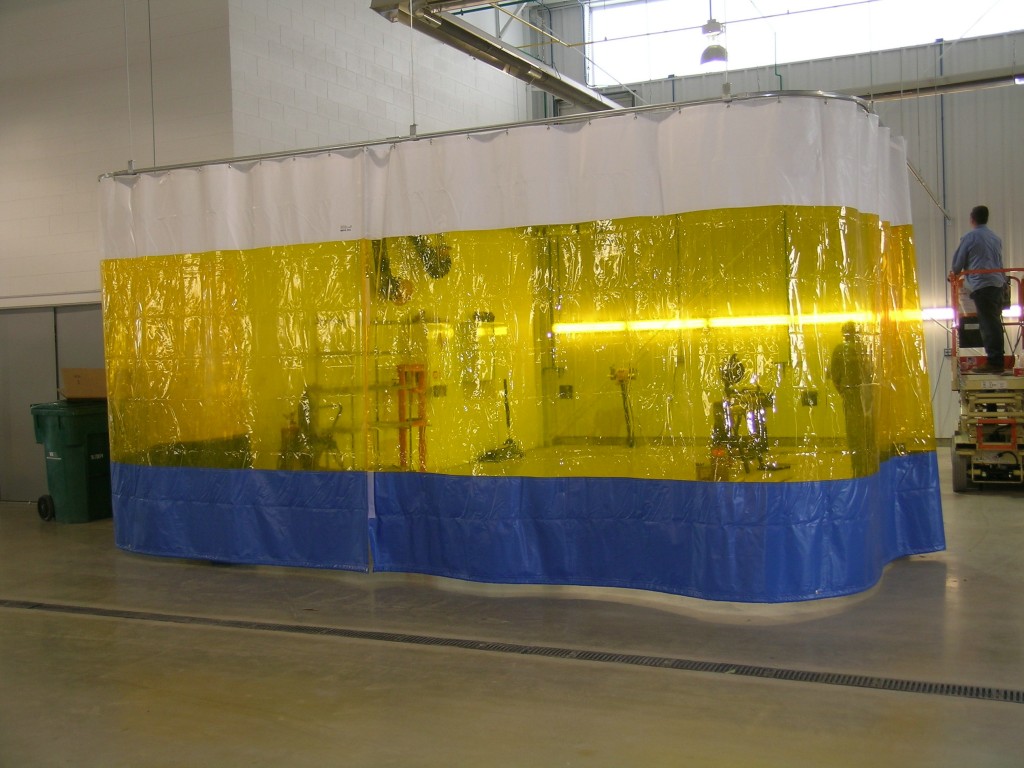

We also have Shop Curtains for Welding Areas.

(Click on any photo to enlarge)

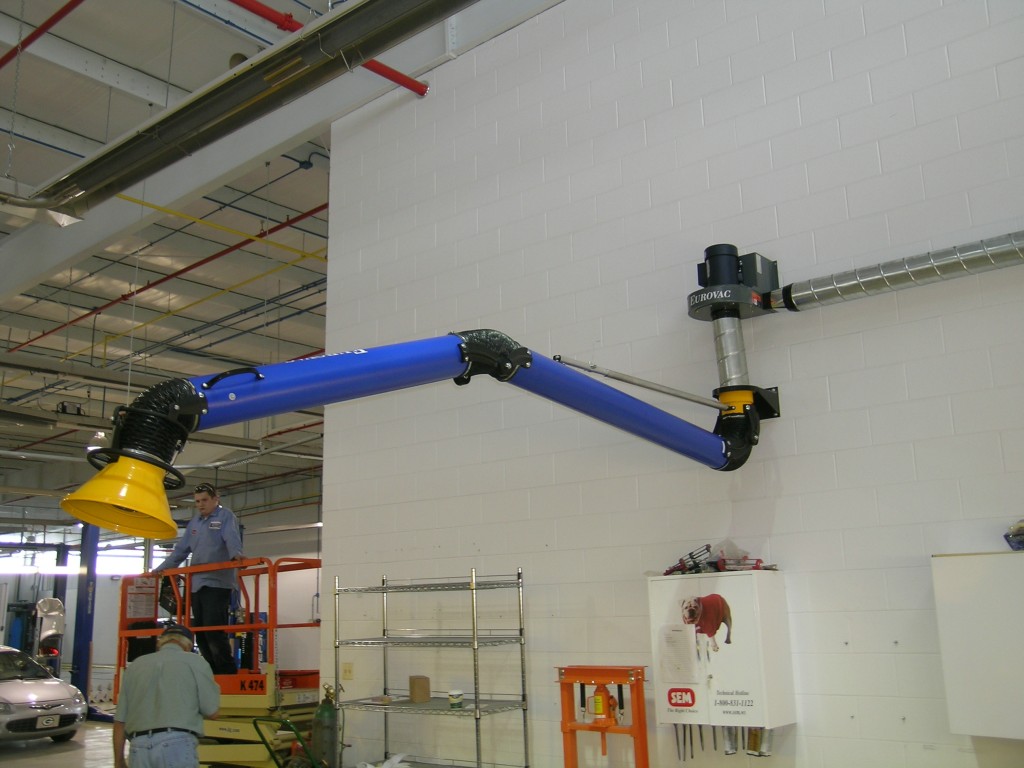

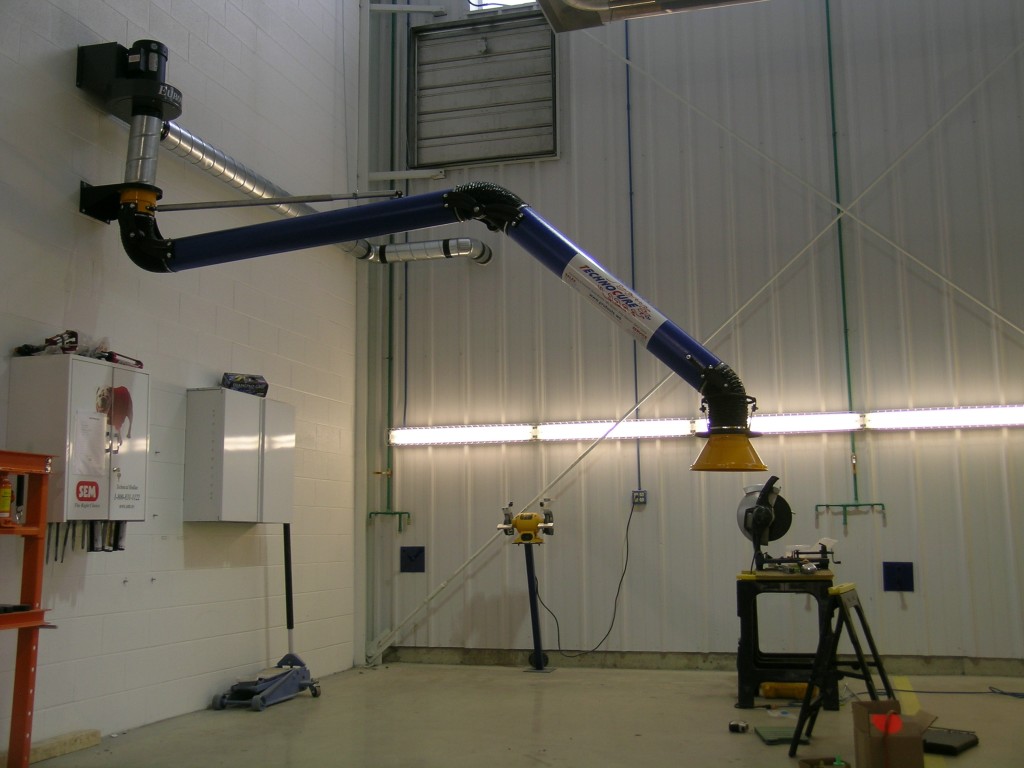

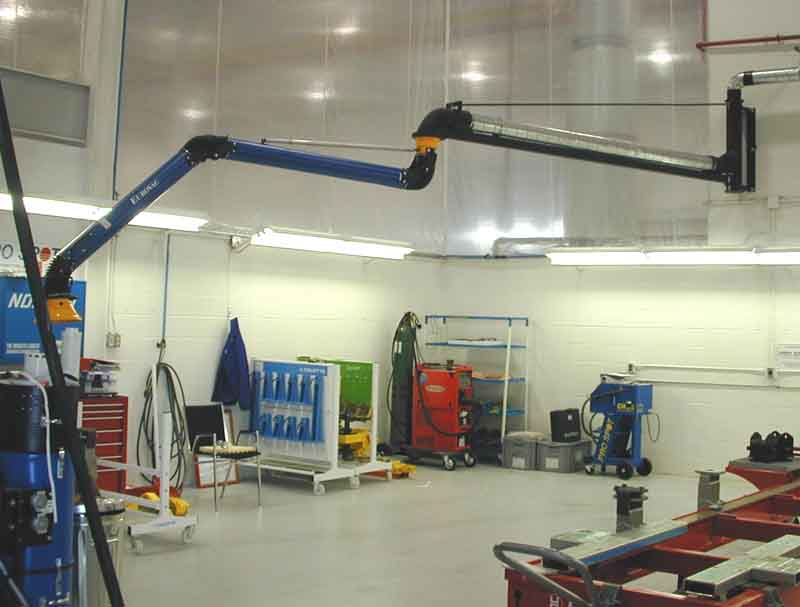

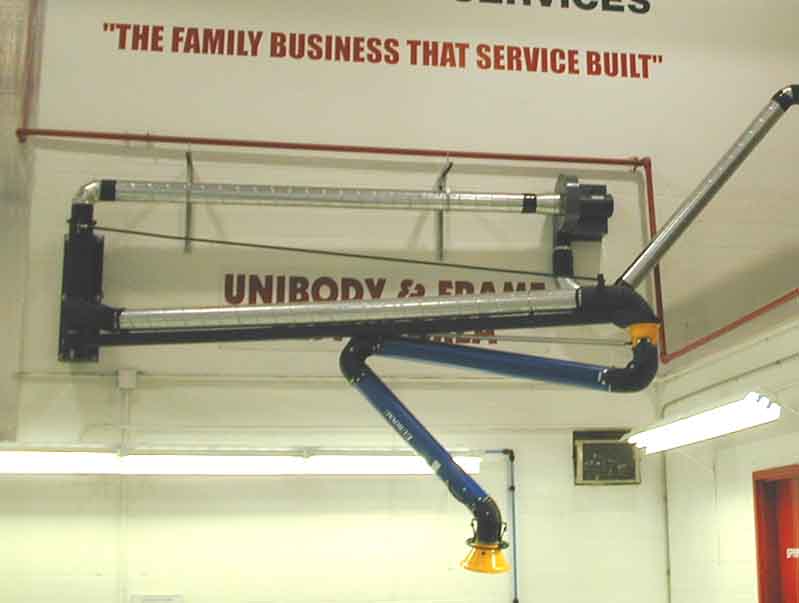

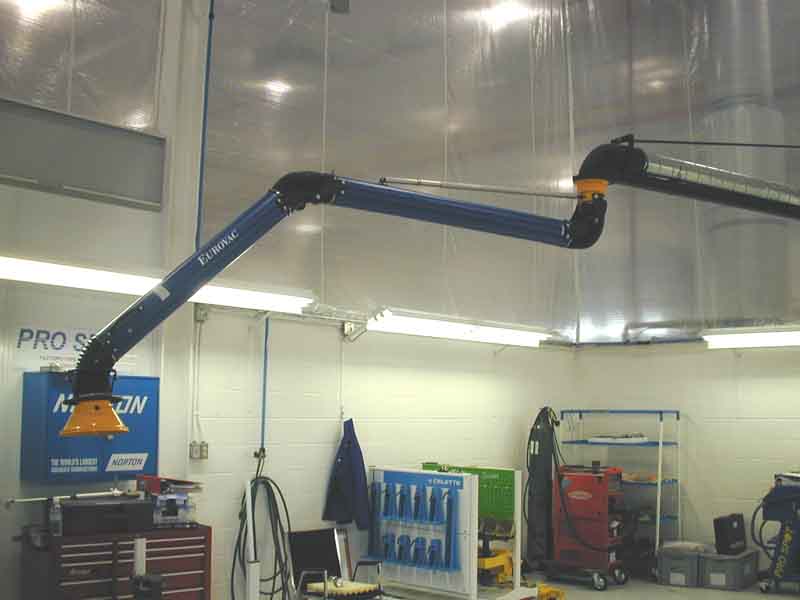

Need more reach? we can do that!

(Click on any photo to enlarge)

Downloads:

Download Technostation Brochure FUME ARM MANUAL 1.7MB
